VideoSecu Articulating Tilt Swivel TV Wall Mount for 40"-88" LED LCD Plasma OLED HDTV Flat Panel Screen Heavy Duty Full Motion, Long Extension 24inch, with VESA 684x400/600x400/400x400/200x200mm BCL
Product details
| Management number | 230612645 | Release Date | 2026/06/18 | List Price | US$41.60 | Model Number | 230612645 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The VideoSecu articulating heavy duty TV wall mount fits most 40-75" LED LCD Plasma flat panel screen, some LED up to 88" with VESA mounting hole patterns up to 690x480mm. This TV mount is constructed with thick high grade steel providing security and stability. Adjustable tilt, swivel, rotate and extension place your TV in multiple viewing angles. The safety screws secure the TV into place for additional security.
Features:- *Premium quality - heavy duty steel construction with durable powder-coated in black finish
- *Multi-directional adjustment tilt, swivel and extend for perfect viewing angle
- *Post-installation level adjustment allows the TV to perfectly level
- *The lock and release design secures the TV into place for additional security and offers convenient installation

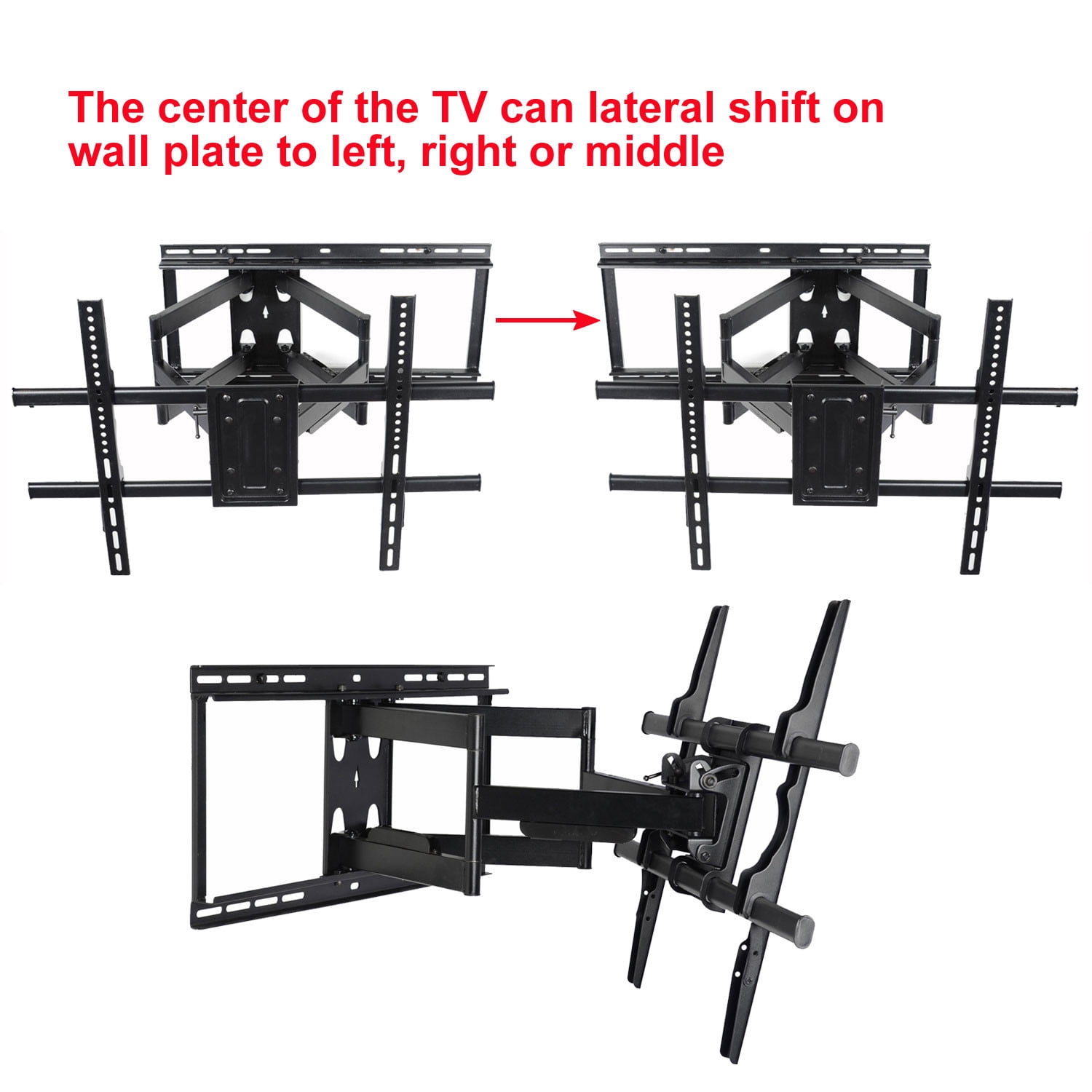

- *The center of the TV can lateral shift on wall plate to middle, left, or right
- *The rectangle cable management covers on the arm keeps the wire concealed and prevent pinching
- *Nesting arm design allows display to be folded parallel to wall to save place
Specification:
- *Fits most 40 - 75 inch TV displays, some LED up to 88 inch (Please check VESA and weight)
- *Fits VESA mounting hole patterns 690x480/ 684x400/ 684x300/ 600x400/ 500x300/ 400x400/ 400x300/ 300x300/ 300x200/ 200x200/ 200x100mm or any hole patterns within 200-690mm wide and 100-480mm high
- *Loading capacity up to 135lbs/61.2kg
- *Adjustable tilt 12 degrees forward or 8 degrees backward for perfect viewing angle
- *Roll +/-5 degrees for level adjustment
- *Swivel left and right for comfortable view angle in different positions
- *Extension & Depth: the mount pulls out up to 24 inch from the wall or to be folded parallel to the wall less than 2.77 inch to save space
- *Fits 25 inch apart wood studs
- *Wall plate dimension: 670x312mm (26.4"x12.3")
- *Warning: This mount does not fit 70 " or above TVs which were manufactured before 2013
Package contents:
TV wall mount, HDMI cable, standard mounting hardware and user manual
Please check whether the mount is suitable for your TV:
- Please check the weight of your TV; it must be less than 135 lbs.
- Look at the back of your TV, find the mounting holes and measure width and height, if the width is within 27.2", height is within 18.9 ", then the mount will work perfect for you.
- The width of your TV should be at least 37". Otherwise the mount is too wide to hide behind your TV.
| Screen size | 88" |
|---|---|
| Max load | 135 lb |
| Mount pattern | 400 x 400 |
| Mount type | Wall Mount |
| Tv & monitor mount type | Full-Motion TV Mount |
| Tilt angle | 12 º |
| Minimum screen size | 40" |
| Material | Steel |
| Brand | VideoSecu |
| Color | Black |
| Finish | Black |
| Weight | 24 lbs |
| Maximum depth | 24 in |
| Has written warranty | No |
| Retail packaging | Kit |
| Model | MW480BWALP-A1 |
