AUZHU- STD - Metric - Aluminium alloy Bracket Guide shaft supports Two-Way connector clamps Double-Hole strut clamps Tube clamp connectors Clamp mountings Column clamp Fixture Size: D50 mm - K50 mm
Product details
| Management number | 229232750 | Release Date | 2026/05/31 | List Price | US$28.22 | Model Number | 229232750 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

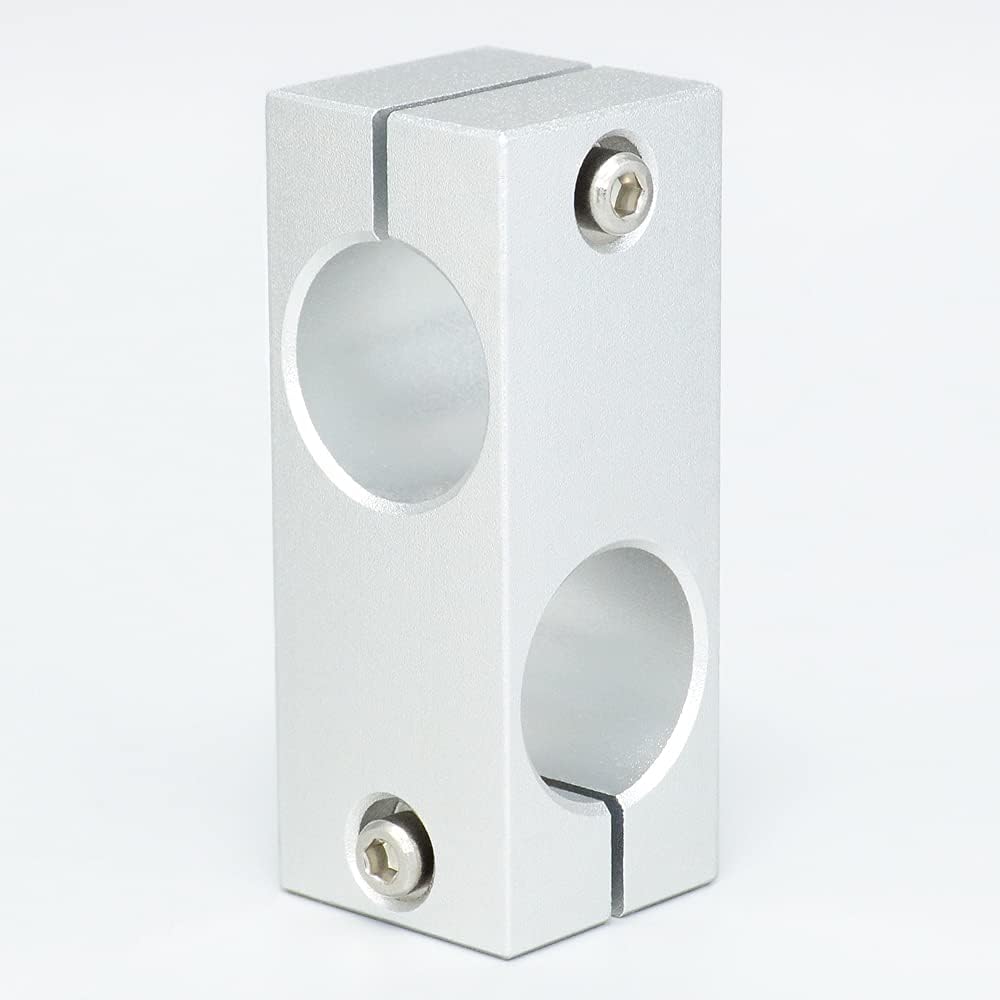

- STD is the model number for this product. The dimensions you have chosen are: the inner diameter D of the shaft hole of the bracket is 50 mm; the inner diameter K of the other shaft hole is 50 mm. Different capital letters are used in the product drawings to represent the dimensions of the various detail positions on the product. The specific dimensional data can be found under the corresponding letters in the specification sheet, and several sizes are available.
- [Material of main body: Aluminium Alloy]; [Finish of main body: Clear Anodize]; [Material of fastening bolts: Carbon Steel]; [Finish of bolts: Black Oxide].
- This bracket supports and secures shafts or pipes, etc., and can also withstand certain loads. The shaft hole of the bracket can be adjusted for locking effect by turning the bolt. When locking shafts or pipes with uneven surfaces, the clearance between the shaft and the bracket can be controlled by twisting the bolt, making it easy to lock the shaft or dismantle it on the spot during use, so that it can be applied to a wider range of use scenarios and enhance use efficiency.
- When the size of the inner diameter of the shaft hole of this bracket is less than 20 mm, the locking bolts for each shaft hole are 1. When the inner diameter of the shaft hole of the bracket is greater than or equal to 20 mm, there are 2 locking bolts for each shaft hole. This bracket is usually used for connecting 2 straight cross-crossing pillars, and can flexibly assist the positioning and installation of pillars by adjusting the height, width and angle.
- Warm reminder: the data on this page are in metric millimetres. As the sizes are measured manually, there may be a slight error, but the error will be less than ±0.5 mm, please understand.
